Products Description
|

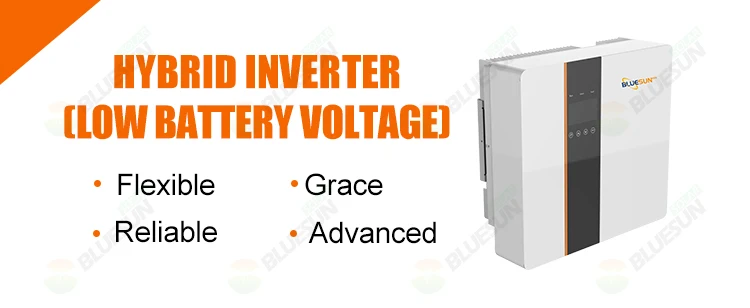

Model
|

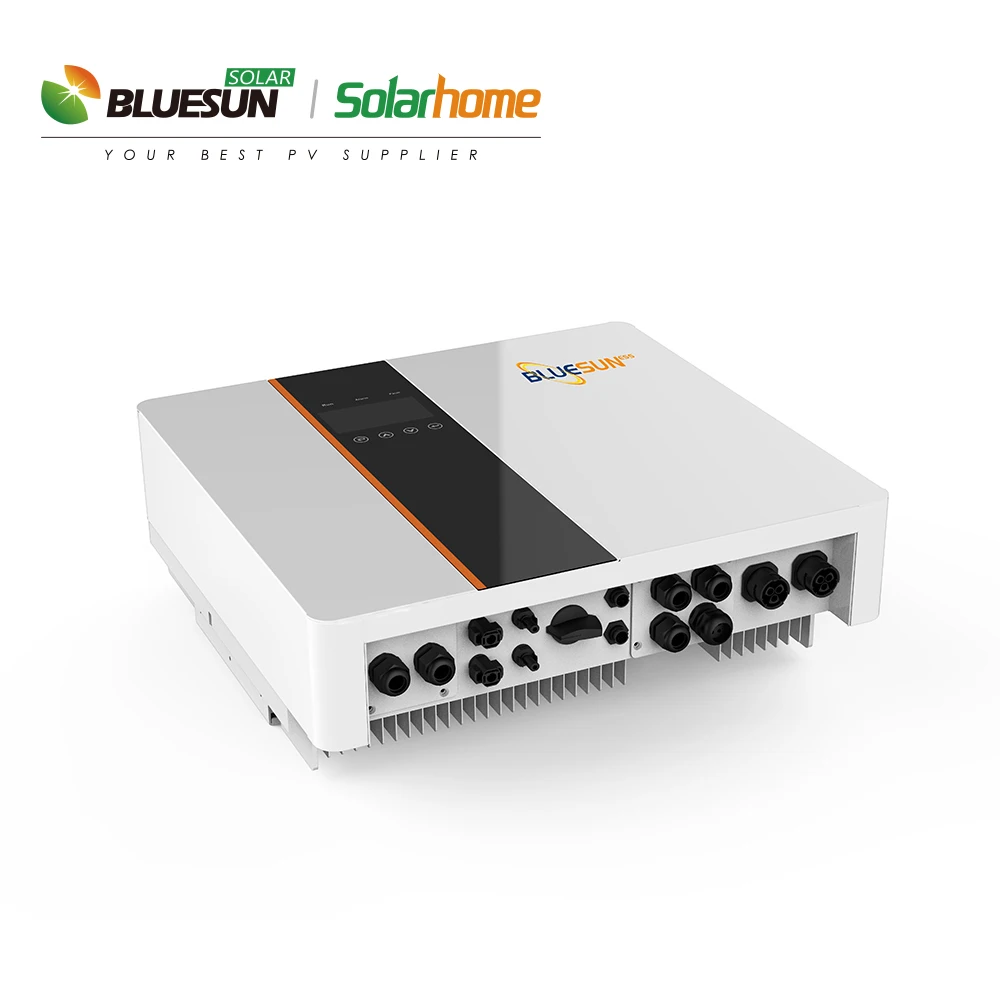

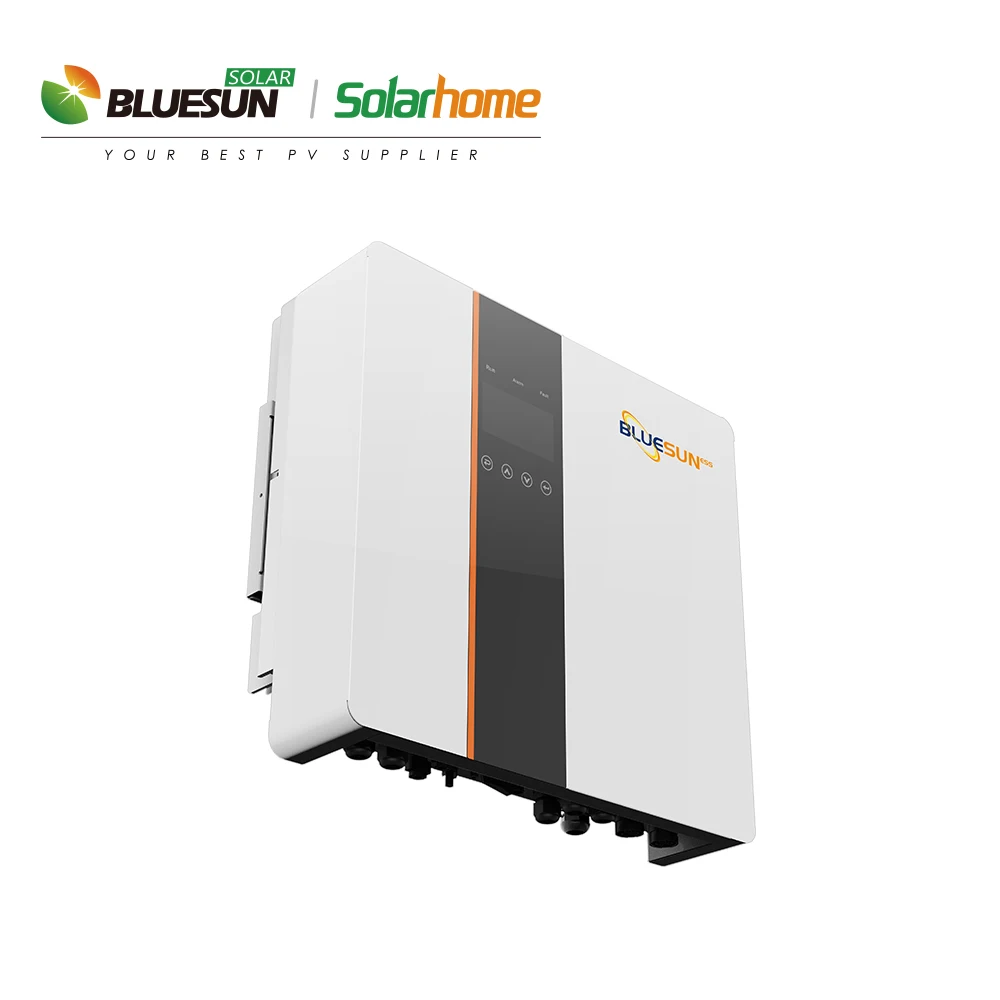

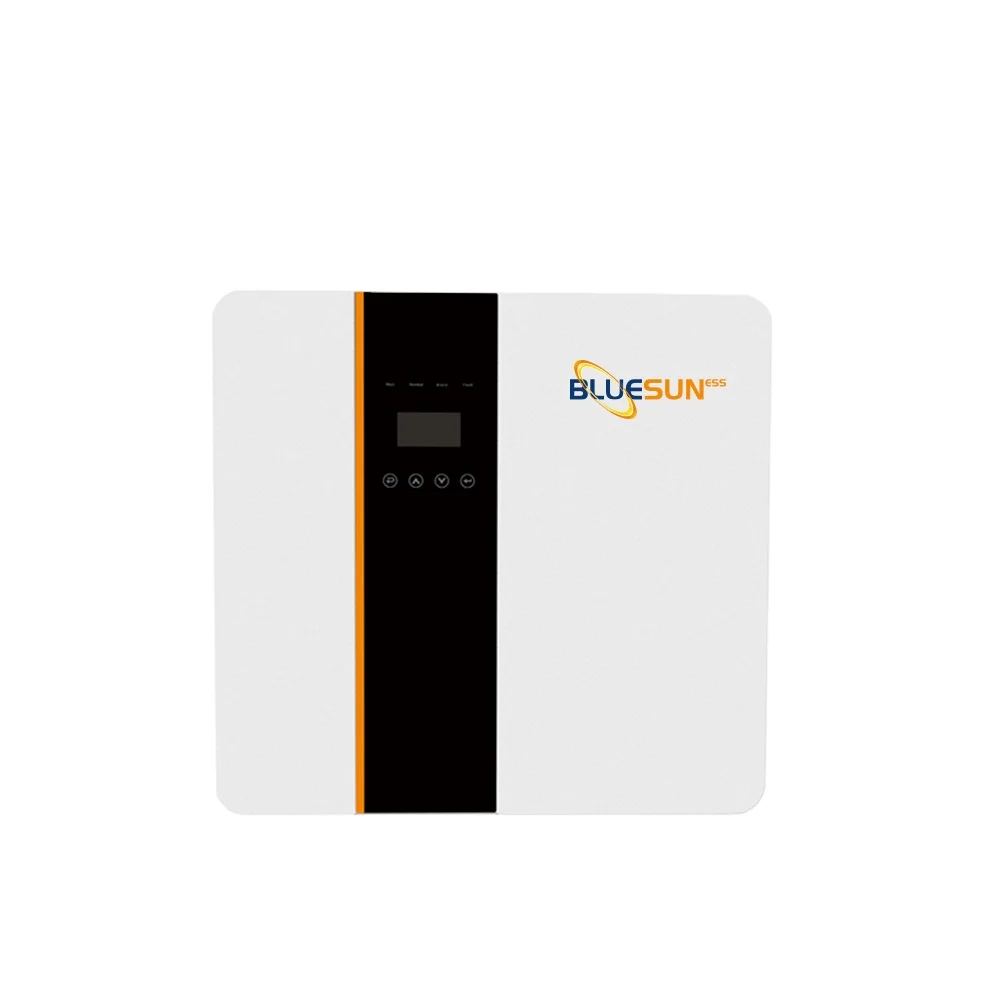

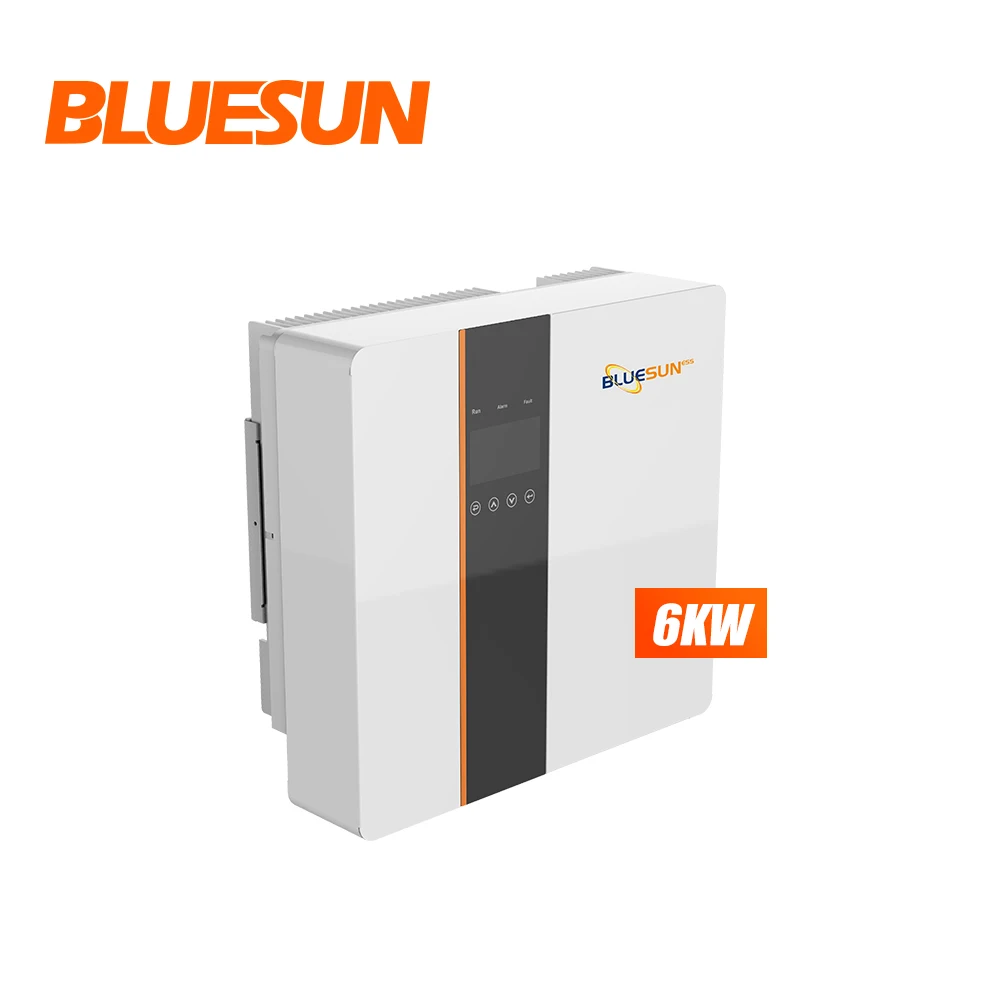

BSE-6KL1
|
|
|
DC input
|
||
|
Max. Input Power
|
7000W
|
|
|
Start-up voltage
|
125V
|
|
|
Max. PV voltage
|
550V
|
|
|
MPPT range/nominal
|
125V-550V /360V
|
|
|
Max. input current
|
14A/14A
|
|
|
MPPT tracker/strings
|
2/1
|
|
|
AC output
|
||
|
Rated power w/va
|
6000VA/6000W
|
|
|
Max. output current
|
26A
|
|
|
Nominal voltage/range
|
230V /180Vac~280Vac
|
|
|
Frequency
|
50 /60Hz
|
|
|
PF
|
1(0.8lagging-0.8leading)
|
|
|
THDI
|
<3%
|
|
|
AC output topology
|
L+N+PE
|
|
|
Battery
|
||
|
Battery voltage range
|
42~59V
|
|
|
Max.charging voltage
|
58V
|
|
|
Charge/discharge current
|
95 A / 110 A
|
|
|
Battery type
|
lithium /Lead-acid
|
|
|
Communication interface
|
CAN/RS485
|
|
|
Eps output
|
||
|
Rated power w/va
|
6000VA/6000W
|
|
|
Rated voltage
|
230Vac
|
|
|
Rated current
|
26A
|
|
|
Rated frequency
|
50 /60Hz
|
|
|
Automatic switchover time
|
<20ms
|
|
|
THDU
|
<2%
|
|
|
General data
|
||
|
Battery chage/dischage
|
95.5%/95%
|
|
|
DC max. efficiency
|
97.60%
|
|
|
Euro efficiency
|
97%
|
|
|
MPPT efficiency
|
99.90%
|
|
|
Protection class
|
IP65
|
|
|
Noise emission (typical)
|
<35dB
|
|
|
Operation temperature
|
-25ºC~+60ºC
|
|
|
Cooling
|
Natural
|
|
|
Relative humidity
|
0 ~95% （non-condensing）
|
|
|
Altitude
|
2000m
|
|
|
Dimensions (WXDXH)
|
550X200X515mm
|
|
|
Weight
|
25kg
|
|
|
Inverter topology
|
Without transformer
|
|
|
Self-consumption
|
<3W
|
|
|
Features
|
||
|
Display
|
LCD
|
|
|
Interface:rs485/wifi/can/drm
|
yes /opt/opt/yes/yes
|
|
|
Certificates
|
CE、TUV
|
|
Applications

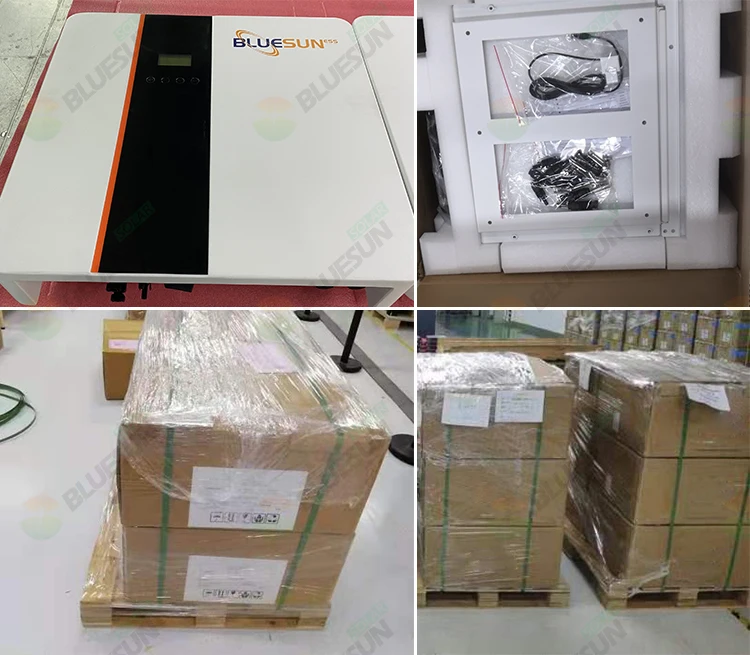

Packing & Delivery

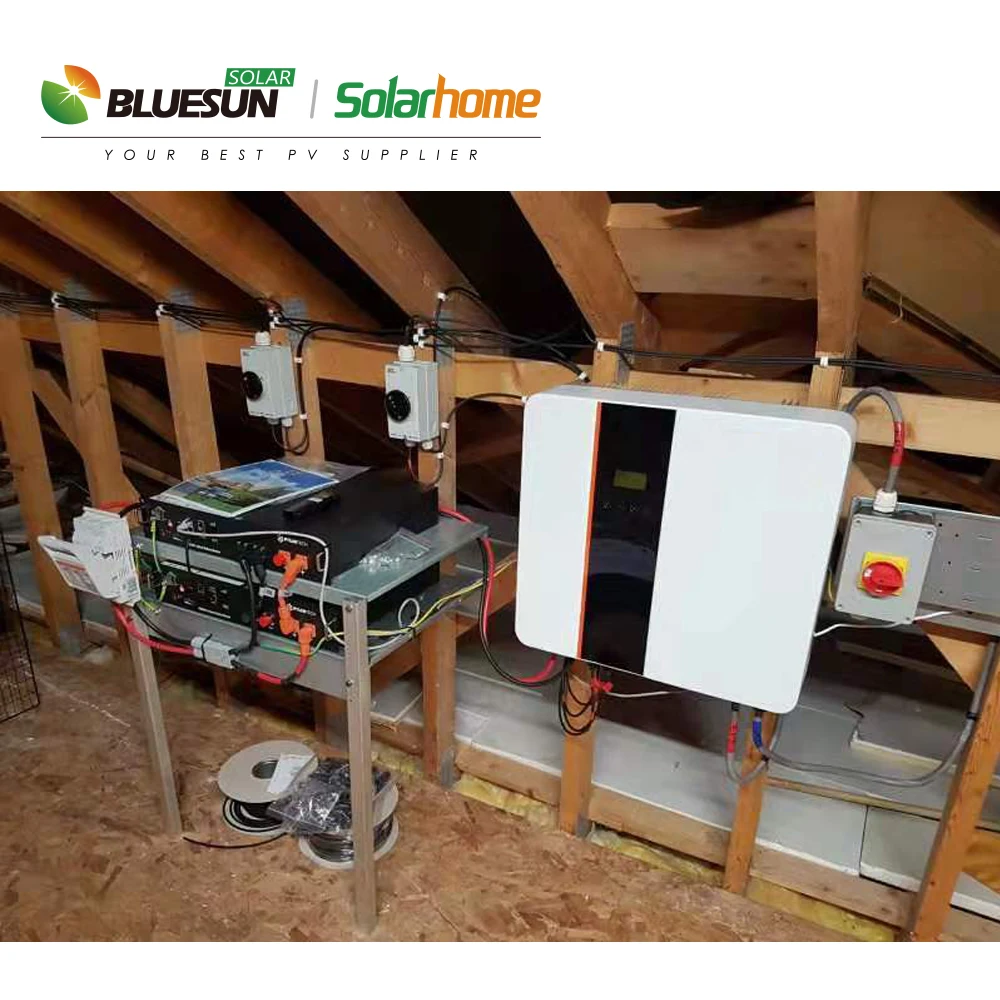

Project
