Product Description
|

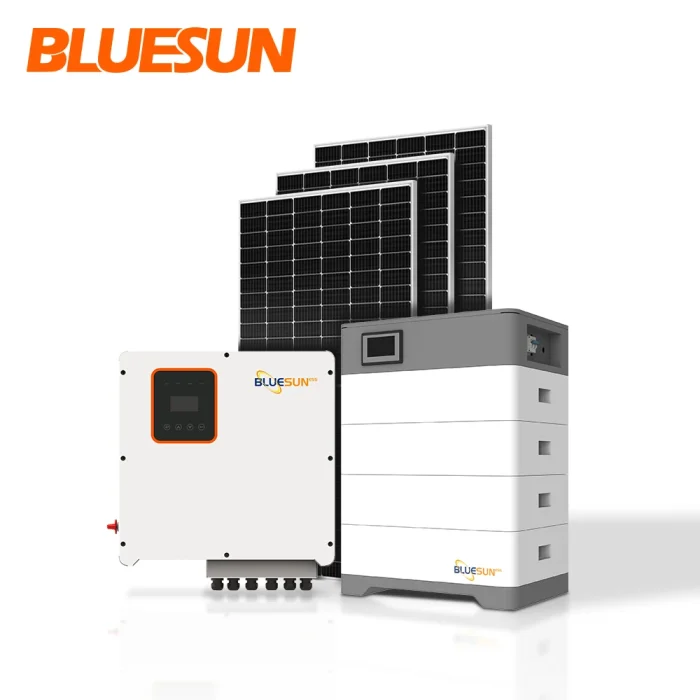

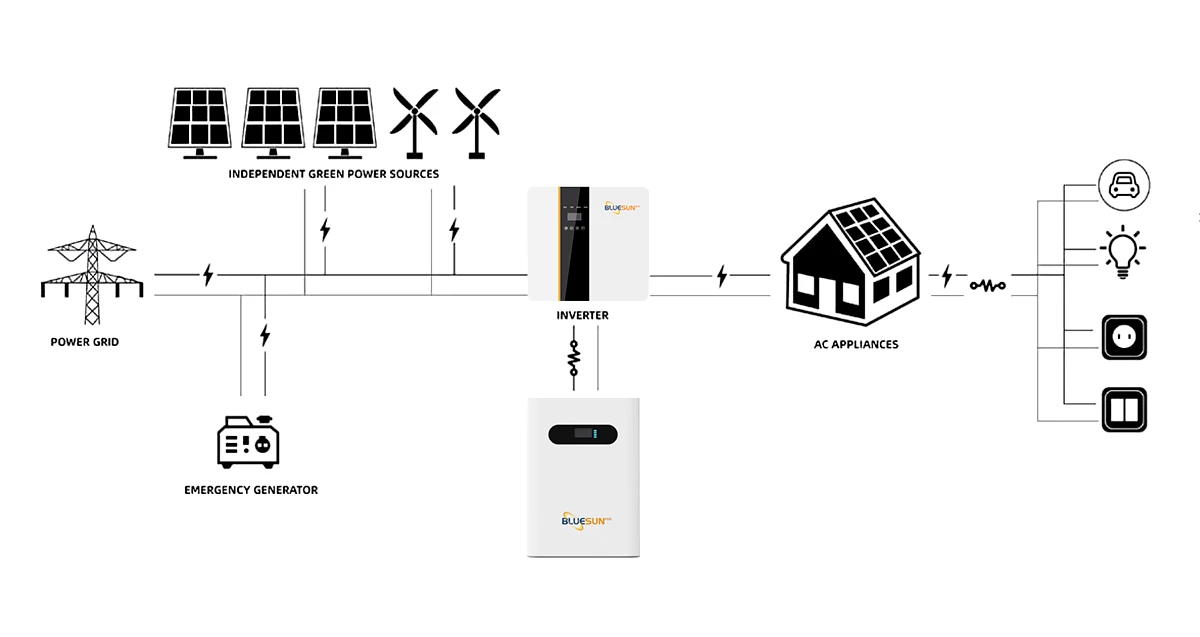

6KW Hybrid Solar Power System Configuration
|
||||||
|
Item
|
Model
|
Description
|
Quantity
|
|||
|
1
|
Solar Panel
|
Half cut mono Black frame 425w solar panel
|
14 pcs
|
|||
|
2
|
Combiner Box
|
Optional
|
1 pc
|
|||
|
3
|
Lithium Battery or Lead Acid Battery
|
10kWh Wall Mounted Battery
|
1pc
|
|||
|
4
|
Hybrid Inverter
|
6kva
|
1pc
|
|||
|
5
|
Mounting Support
|
Roof/Ground
|
1 set
|
|||
|
6
|
Cable
|
4mm² PV cable
|
100m
|
|||
|
7
|
Connector
|
Solar Connector
|
4 pairs
|
|||
|
8
|
Tools Bag
|
Solar Installation tools
|
1 set
|
|||
Configuration detail

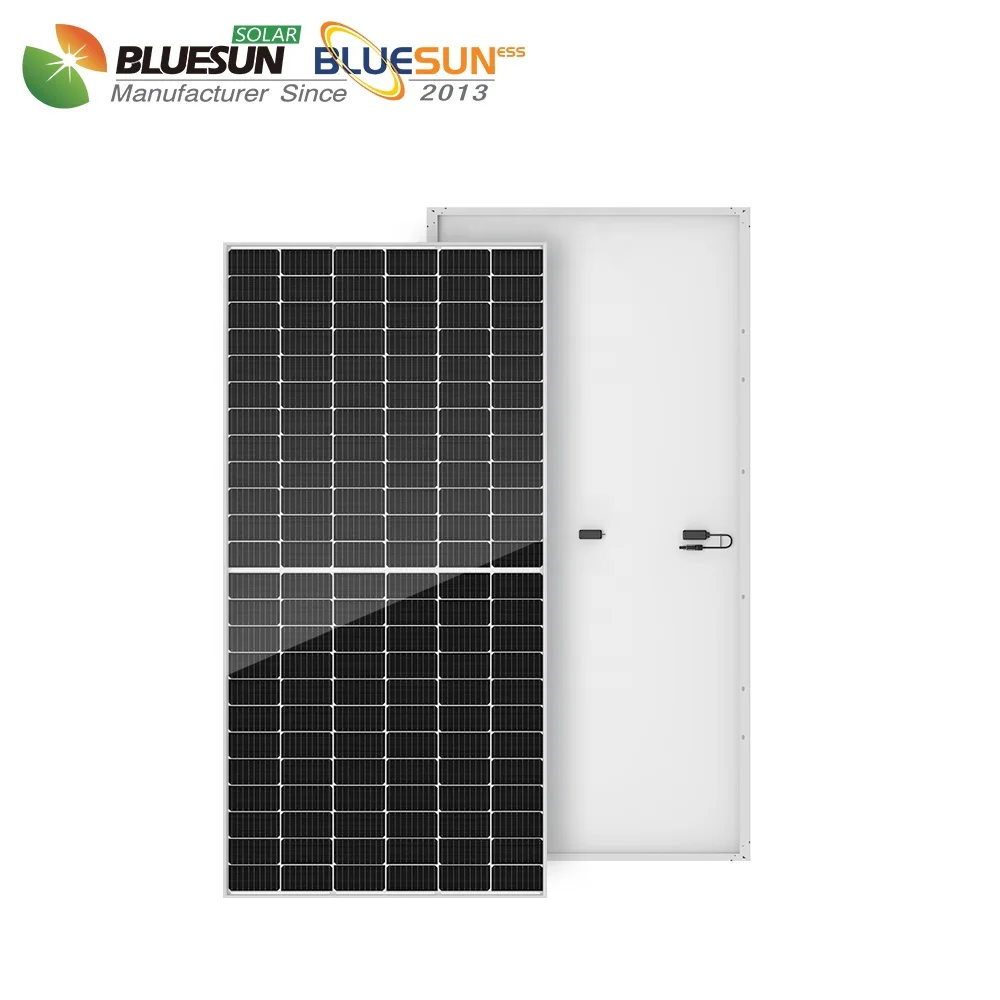

Mono Solar Panel
>Peak Power Watts: BSM425G12-54HPH
>Max Power Voltage: 32.03V
>Max Power Current: 13.29A
>Open Circuit Voltage: 38.25V
>Short Circuit Current: 14.18A
>Dimensions:1722*1134*30mm
>Weight: 21.5kg
>Max Power Voltage: 32.03V
>Max Power Current: 13.29A
>Open Circuit Voltage: 38.25V
>Short Circuit Current: 14.18A
>Dimensions:1722*1134*30mm
>Weight: 21.5kg
PV Combiner Box
>Cross Section: 4mm2, 6mm2 Optional
>Rated Voltage:600VDC/1000VDC(TUV)
>Rated Current: 55A,70A
>Colors: Black For STD, Red Optional.
>Rated Voltage:600VDC/1000VDC(TUV)
>Rated Current: 55A,70A
>Colors: Black For STD, Red Optional.

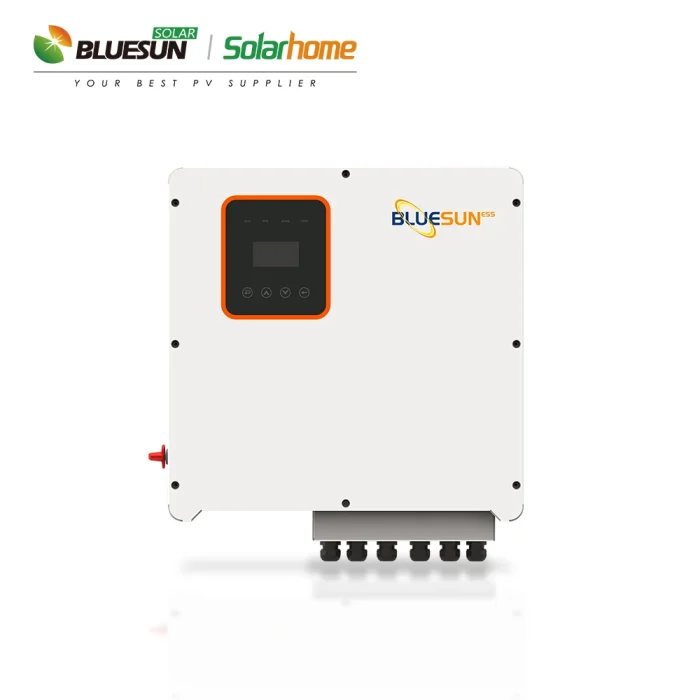

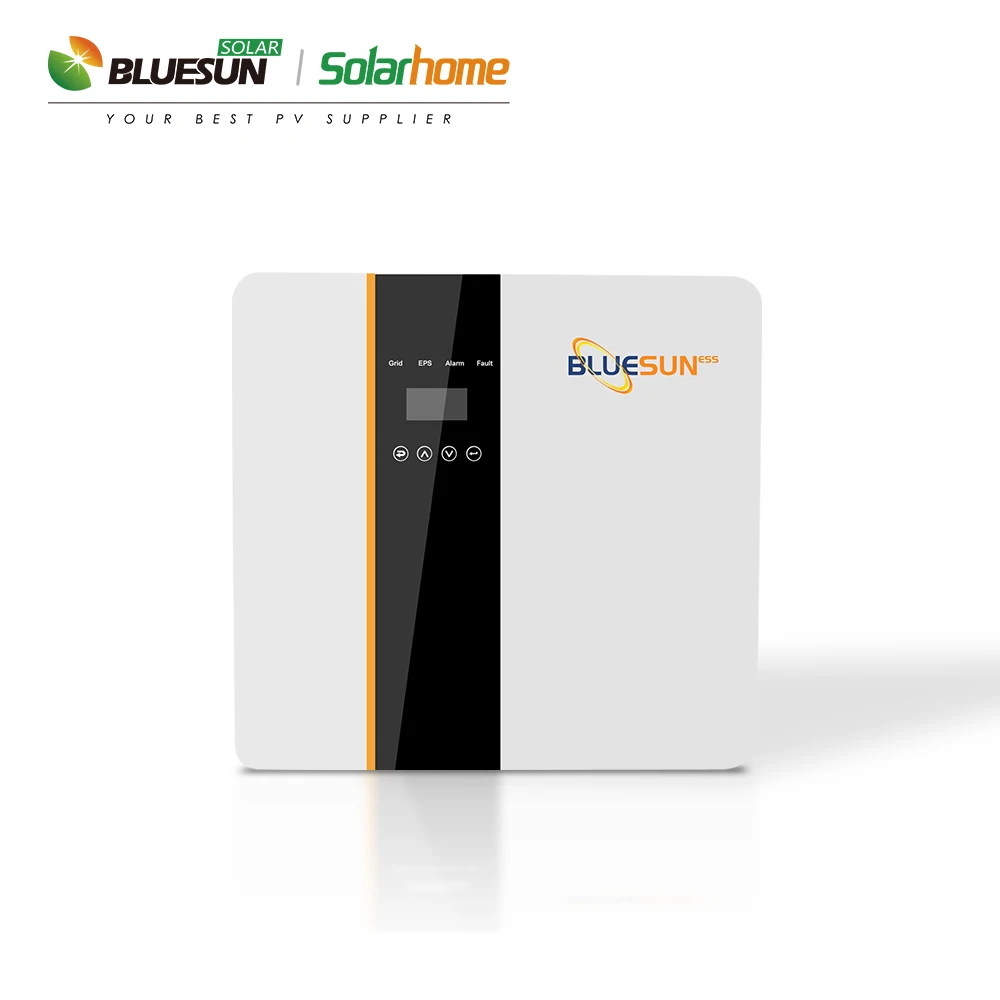

Hybrid Solar Inverter
> Modular & NREL certified PCS P-Q & V-F mode
>Built-in or external transformer offers option for 400Vac connection.
>Design with highly integrated power distribution boxes
>Intermodal shipping container
>10ft/20ft/40ft standard ISO container.
>Built-in or external transformer offers option for 400Vac connection.
>Design with highly integrated power distribution boxes
>Intermodal shipping container
>10ft/20ft/40ft standard ISO container.

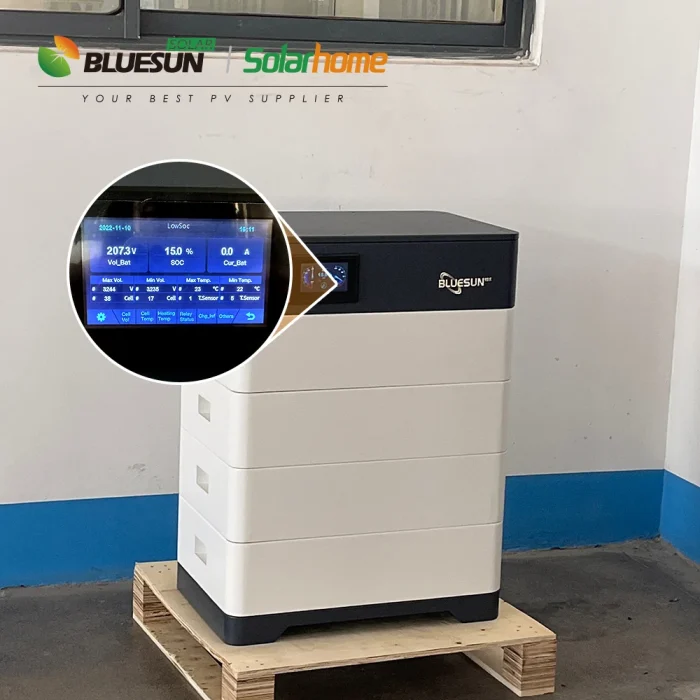

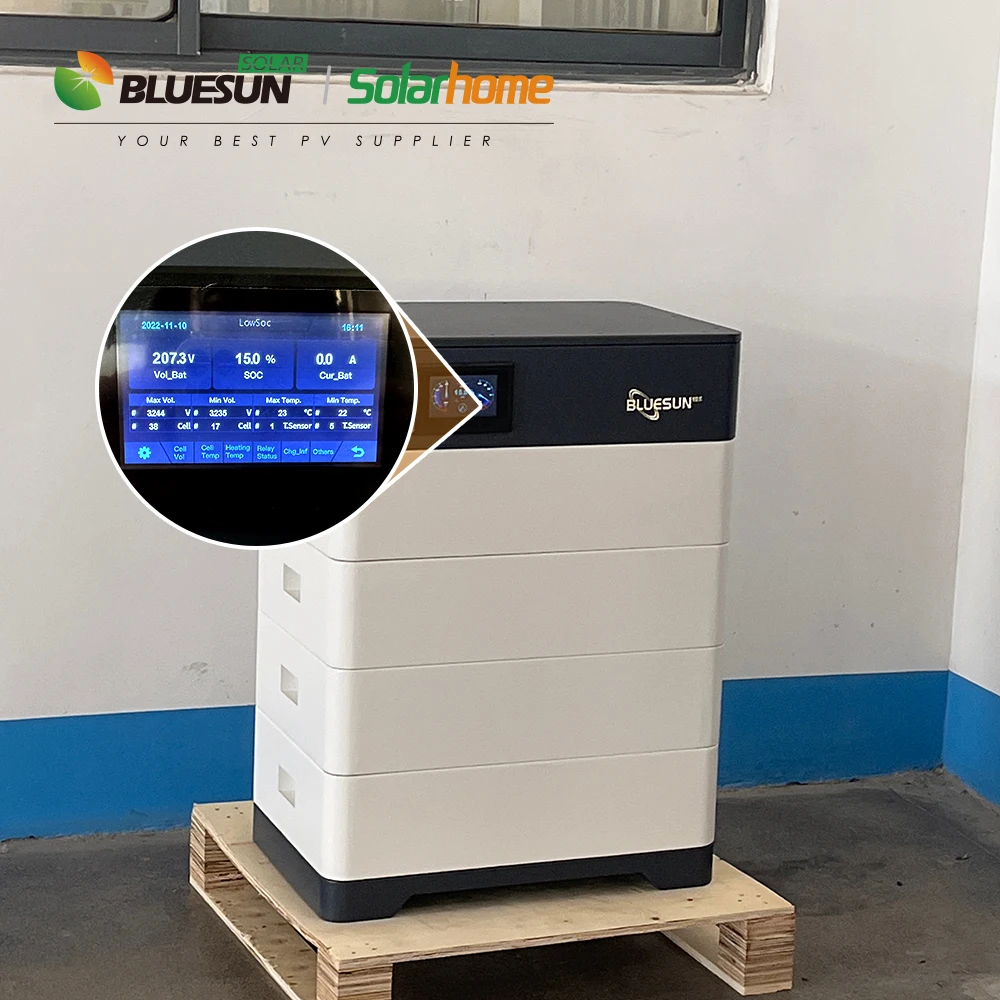

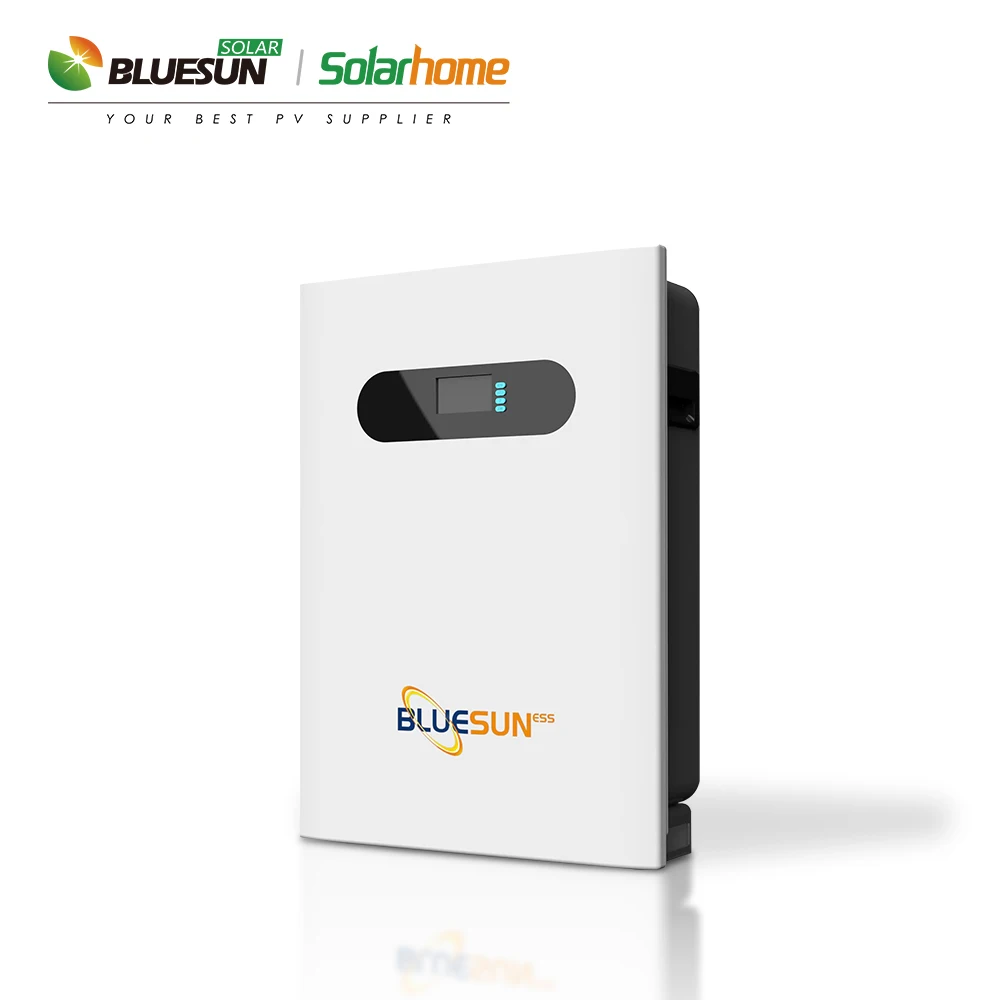

Battery Pack
> 2V,12V Agm Battery
> 2V,12V Gel Battery
> 48V Lithium Battery
Without a battery bank (or a generator) it well be lights out by sunset. A battery bank is essentially a group of batteries wired
together
> 2V,12V Gel Battery
> 48V Lithium Battery
Without a battery bank (or a generator) it well be lights out by sunset. A battery bank is essentially a group of batteries wired
together

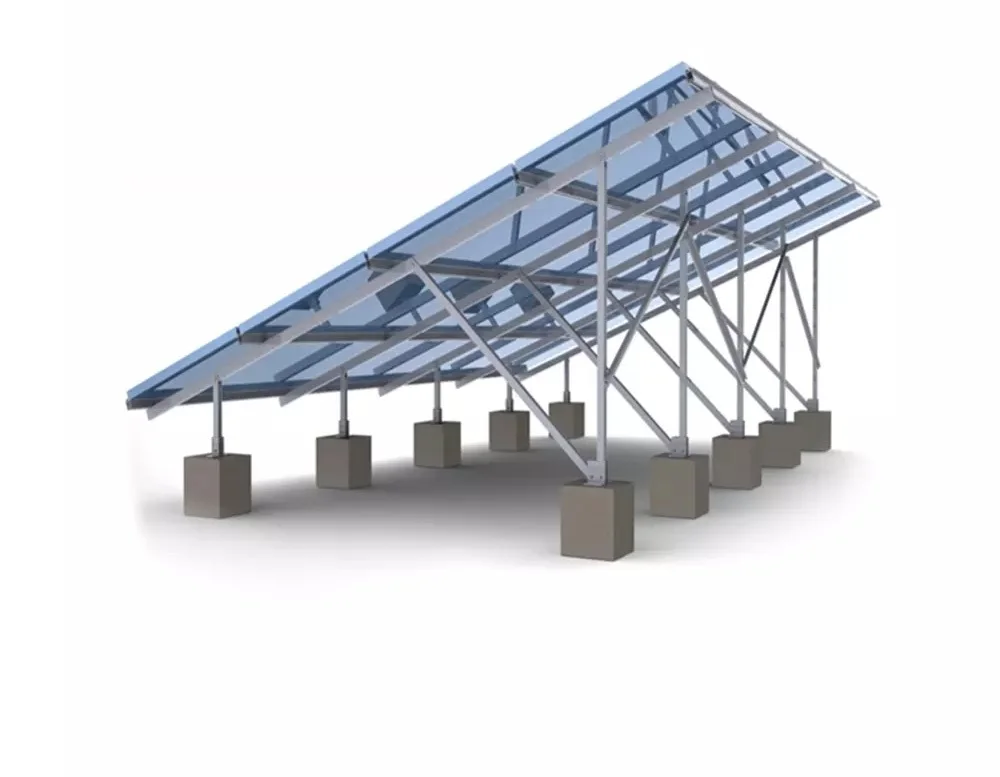

PV Mounting System
> Residential Roof(Pitched Roof)
> Commercial Roof(Flat roof&workshop roof)
> Ground Solar Mounting system
> Vertical wall solar mounting system
> All aluminum structure solar mounting system
> Car parking solar mounting system
> Commercial Roof(Flat roof&workshop roof)
> Ground Solar Mounting system
> Vertical wall solar mounting system
> All aluminum structure solar mounting system
> Car parking solar mounting system
PV Tools
>Wire Cable Cutter & Stripper,
>Disassembly Tool

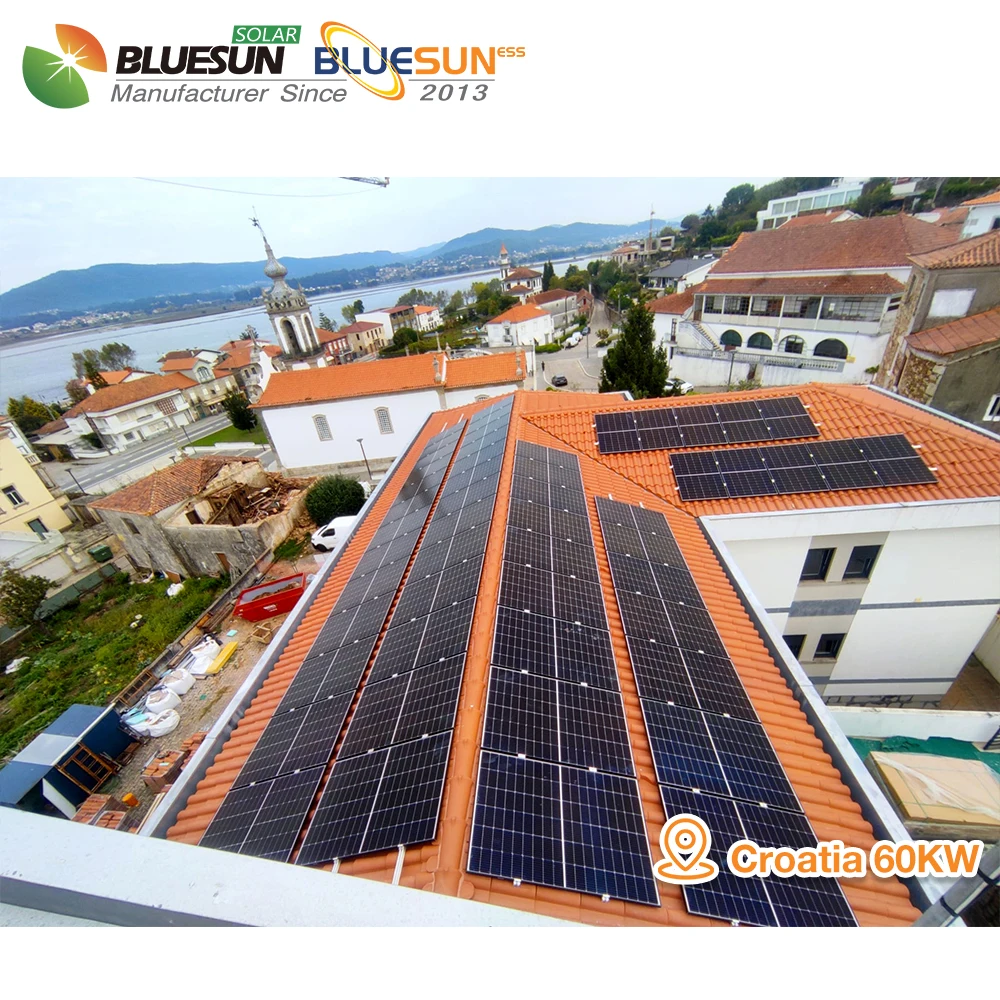

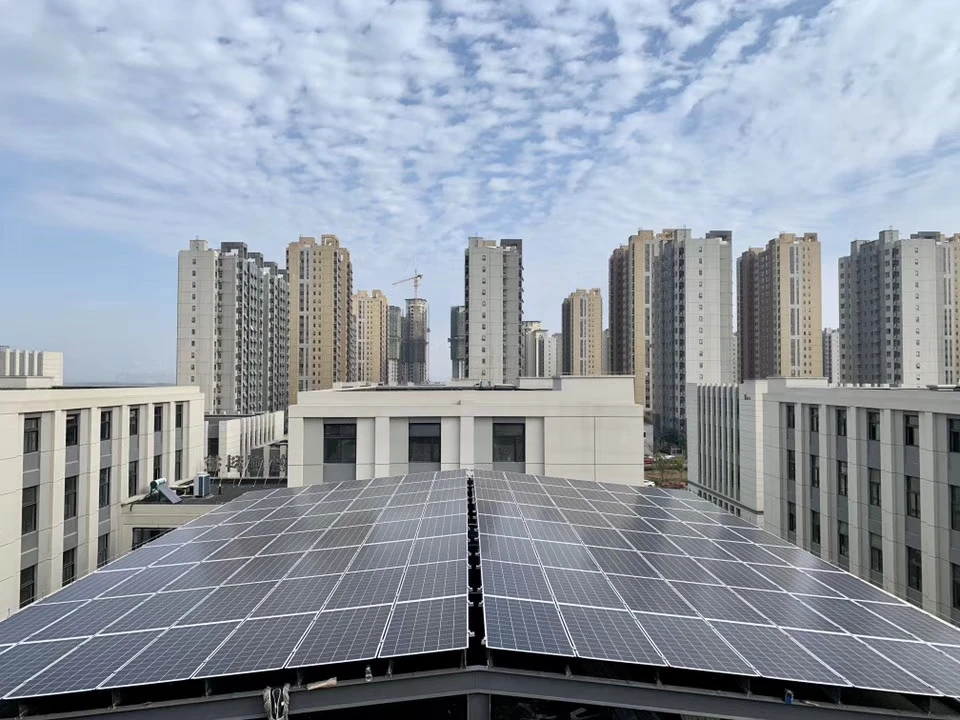

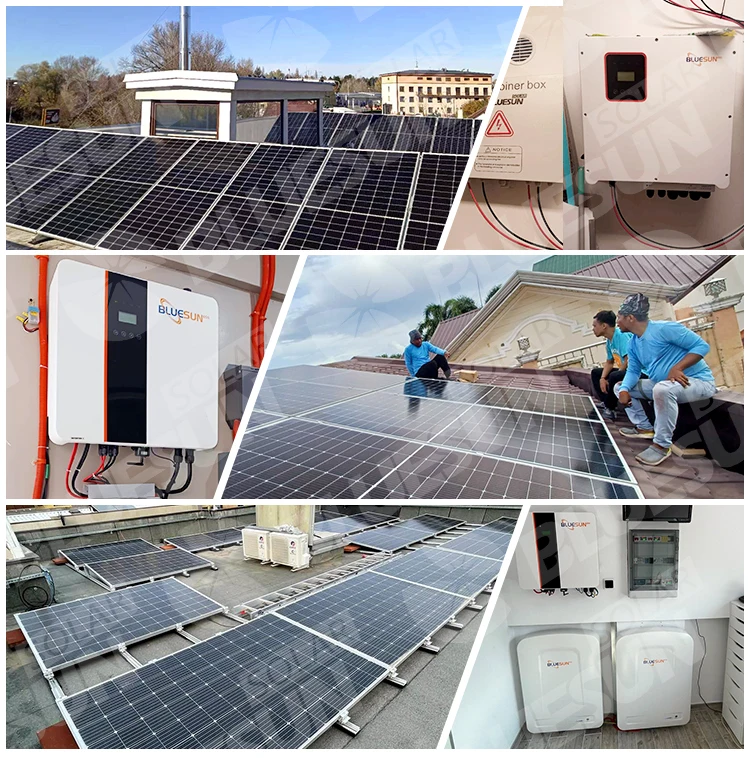

Project

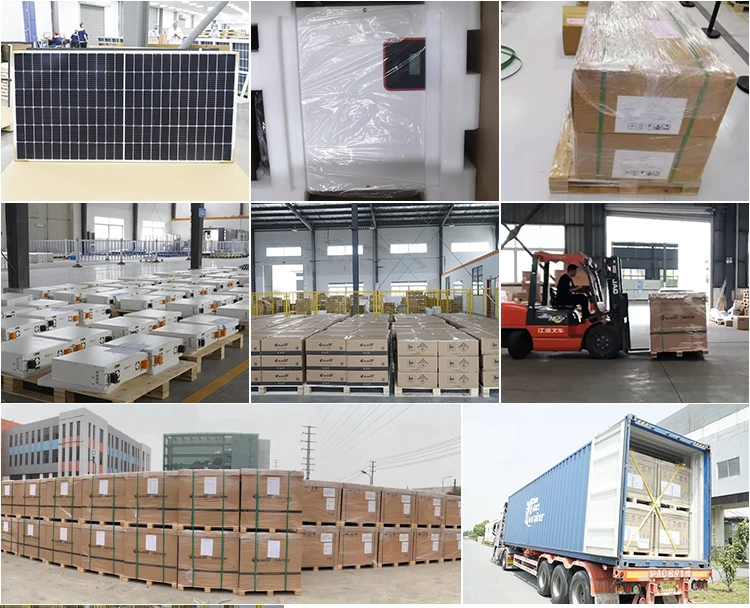

Packing
Company Profile
Please tell us the products you are interested in and your specific usage needs, and we will recommend you the right products and solutions at the right price according to your needs. Recommend to add my whats.app +86 15675147996. We will reply to you faster.
