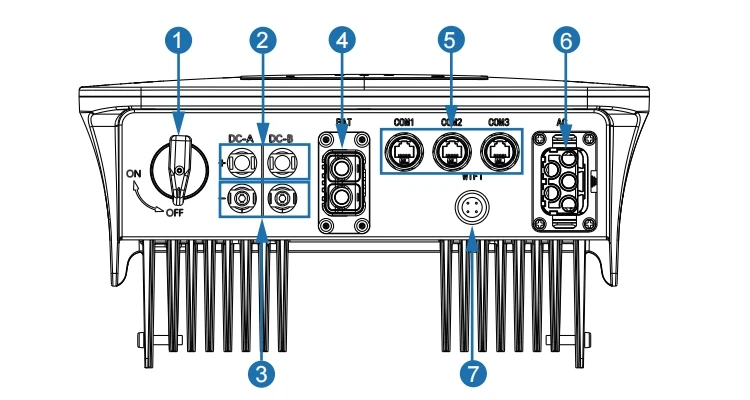

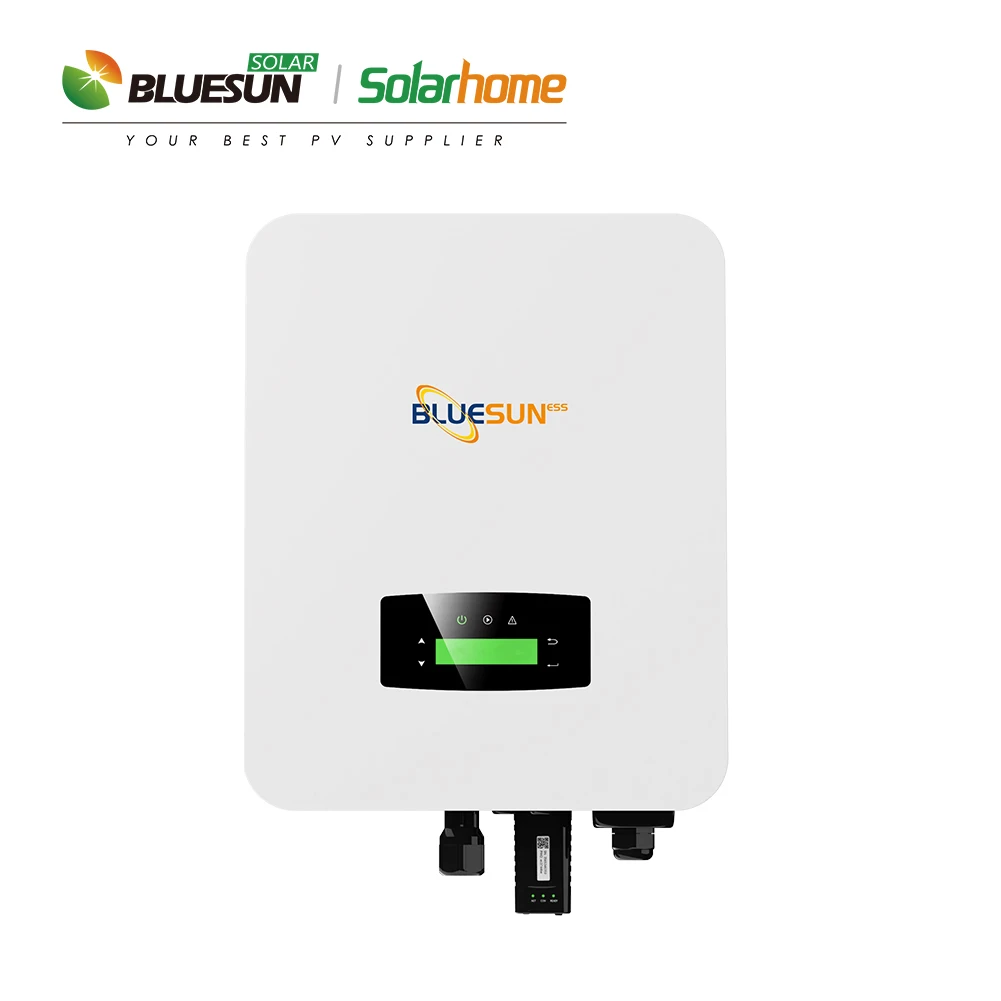

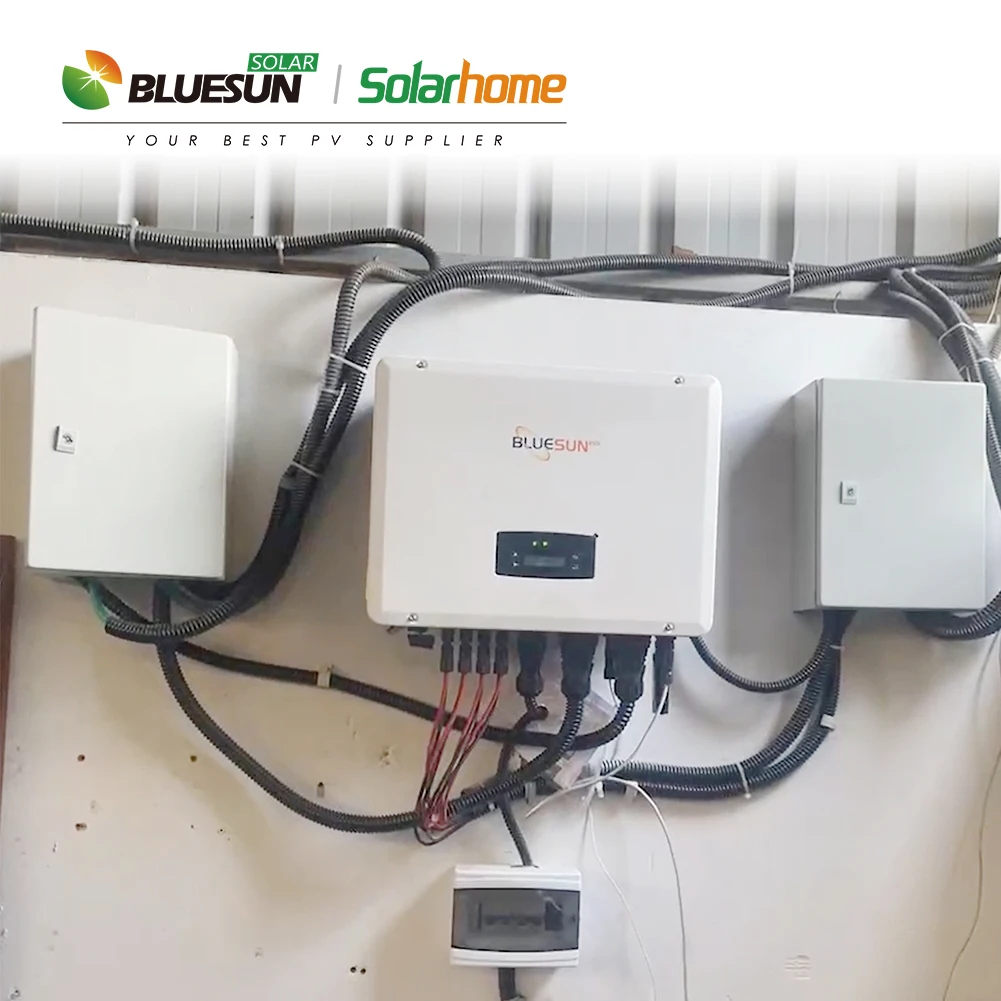

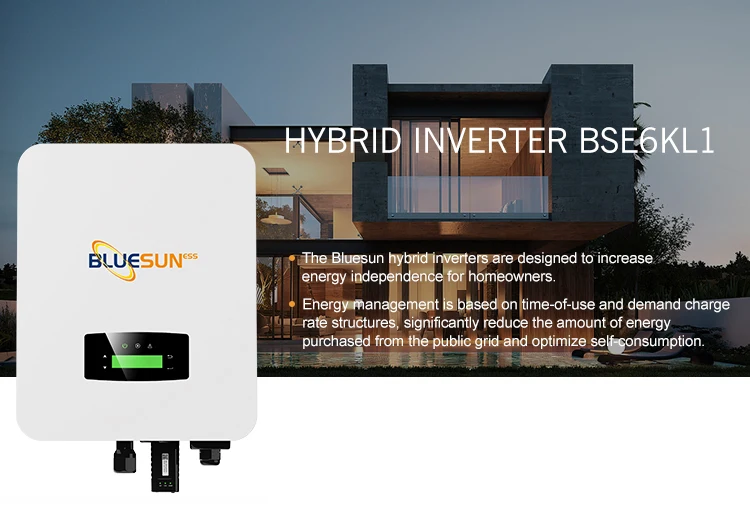

Products Description
|
No
|
Items
|
|
1
|
DC Switch
|
|
2
|
DC Connectors ( + ) For PV Strings
|
|
3
|
DC Connectors ( − ) For PV Strings
|
|
4
|
Battery Port
|
|
5
|
Communication Port
|
|
6
|
AC Port & EPS Port
|
|
7
|
Monitor Module Port
|

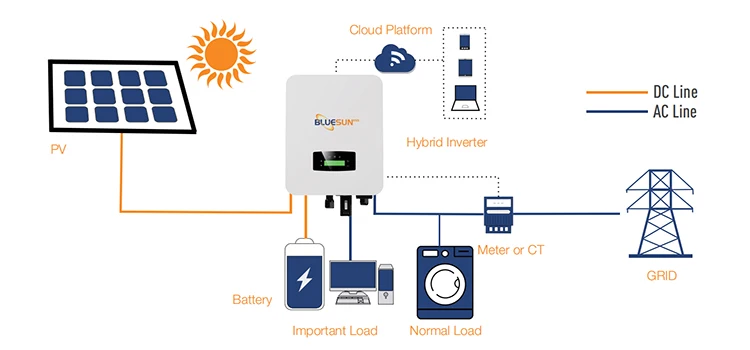

Product Topology

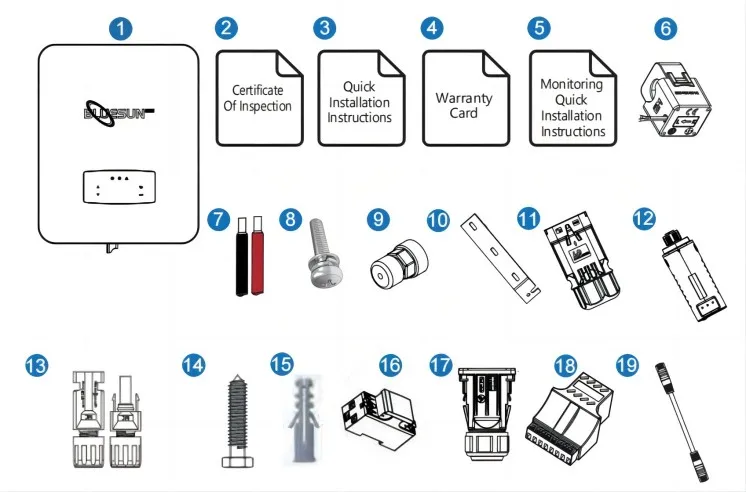

Package List
|
No.
|
Qty
|
Items
|
No.
|
Qty
|
Items
|
|
1
|
1
|
Hybrid Inverter
|
11
|
1
|
Battery Connector
|
|
2
|
1
|
Certificate Of Inspection
|
12
|
1
|
Monitor Module
|
|
3
|
1
|
Quick Installation Instructions
|
13
|
2
|
DC Connector
|
|
4
|
1
|
Warranty Card
|
14
|
3
|
Mounting Bracket Screw
|
|
5
|
1
|
Monitoring Quick Installation Instructions
|
15
|
3
|
Plastic Expansion Tube
|
|
6
|
1
|
CT
|
16
|
1
|
Smart Meter (Opitional)
|
|
7
|
1
|
Battery wire
|
17
|
1
|
AC Waterproof Cover
|
|
8
|
1
|
Security Screw
|
18
|
1
|
Communication Adapter
|
|
9
|
3
|
Communication Connectors
|
19
|
2
|
Communication T568B
|
|
10
|
1
|
Wall Mounting Bracket
|
Product Paramenters
|
Model
|
BSE6KL1
|
|
|
PV Input
|
Max. Input Power (kW)
|
9.0
|
|
Max. PV Voltage (V)
|
550
|
|
|
MPPT Range (V)
|
80 – 500
|
|
|
Full MPPT Range (V)
|
170 – 500
|
|
|
Normal Voltage (V)
|
360
|
|
|
Startup Voltage (V)
|
100
|
|
|
Max. Input Current (A)
|
18.5 x 2
|
|
|
Max. Short Current (A)
|
26 x 2
|
|
|
No. of MPP Tracker / No. of PV String
|
2/2
|
|
|
Battery Port
|
Max. Charge/Discharge Power (kW)
|
4.8
|
|
Max. Charge/Discharge Current (A)
|
80
|
|
|
Battery Normal Voltage (V)
|
51.2
|
|
|
Battery Voltage Range (V)
|
40-60
|
|
|
Battery Type
|
Li-ion / Lead-acid etc.
|
|
|
AC Grid
|
Max Continuous Current (A)
|
28.0
|
|
Max Continuous Power (kVA)
|
6.0
|
|
|
Nominal Grid Current(A)
|
27.3 / 26.1
|
|
|
Nominal Grid Voltage (V)
|
198 to 242 @ 220 / 207 to 253 @ 230
|
|
|
Nominal Grid Frequency (Hz)
|
50 / 60
|
|
|
Power Factor
|
0.999 (Adjustable from 0.8 overexcited to 0.8 underexcited)
|
|
|
Current THD (%)
|
<3
|
|
|
AC Load
Output |
Max Continuous Current (A)
|
28.0
|
|
Max Continuous Power (kVA)
|
6.0
|
|
|
Max Peak Current (A) (10min)
|
41.0 / 39.2
|
|
|
Max Peak Power (kVA) (10min)
|
9.0
|
|
|
Nominal AC Current (A)
|
27.3 / 26.1
|
|
|
Nominal AC Voltage L-N (V)
|
220 / 230
|
|
|
Nominal AC Frequency (Hz)
|
50 / 60
|
|
|
Switching Time (s)
|
Seamless
|
|
|
Voltage THD (%)
|
< 3
|
|
|
Efficiency
|
CEC Efficiency (%)
|
97.0
|
|
Max. Efficiency (%)
|
97.6
|
|
|
PV to Bat. Efficiency (%)
|
98.1
|
|
|
Bat. between AC Efficiency (%)
|
96.8
|
|
|
Protection |
PV Reverse Polarity Protection
|
Yes
|
|
Over Current/Voltage Protection
|
Yes
|
|
|
Anti-Islanding Protection
|
Yes
|
|
|
AC Short Circuit Protection
|
Yes
|
|
|
Residual Current Detection
|
Yes
|
|
|
Ground Fault Monitoring
|
Yes
|
|
|
Insulation Resister Detection
|
Yes
|
|
|
PV Arc Detection
|
Yes
|
|
|
Enclosure Protect Level
|
IP65 / NEMA4X
|
|
|
General Data |
Dimensions (W x H x D, mm)
|
370 x 513 x 192
|
|
Weight (kg)
|
17
|
|
|
Topology
|
Transformerless
|
|
|
Cooling
|
Intelligent Fan
|
|
|
Relatively Humidity
|
0 – 100 %
|
|
|
Operating Temperature Range (°C)
|
– 25 to 60
|
|
|
Operating Altitude (m)
|
< 4000
|
|
|
Noise Emission (dB)
|
– 25
|
|
|
Standby Consumption (W)
|
< 10
|
|
|
Mounting
|
Wall Bracket
|
|
|
Communication with RSD
|
SUNSPEC
|
|
|
Display & Communication Interfaces
|
LCD, LED,RS485,CAN,Wi-Fi,GPRS,4G
|
|
|
Certification & Approvals
|
NRS97, G98/G99, EN50549-1, C10/C11, AS 4777,
VDE-AR-N4105, VDE0126, IEC62040, IEC62109-1, IEC62109-2 |
|
|
EMC
|
EN61000-6-2,EN61000-6-3
|
